IEC60332 Vertical Flammability Test Equipment For Optical Single Cable

Brand Name : KINGPO

MOQ : 1

Certification : calibration certificates

Place of Origin : Mainland China

Price : To be quoted

Payment Terms : T/T

Supply Ability : 5 sets per month

Delivery Time : 25 working days

Packaging Details : safety carton pack or plywood box.

Standard : IEC60332

Application : for vertical burning test of single cable or optical cable products

Working voltage : 220V/50Hz

propane : 650±30mL/min

air : 10±0.5L/min

Burning angle : Tilt 45°±2°

Contact Now

IEC60332 Vertical Flammability Test Equipment For Optical Single Cable

IEC60332 Single Cable Vertical Burning Test Chamber

Standard: IEC60332-1-1:2004,IEC60332-1-2:2004,IEC60332-1-3:2004,IEC 60332-2-2 and etc.

Application:Suitable for vertical burning test of single cable or optical cable products, determine the combustion characteristics of insulating materials.

Test sample:Single cable or optical cable products.

Feature:Using integral intake automatic ignition system, combustion time delay only 0.1s to ensure that the full combustion of the gas.

Parameters:

Working voltage

220V/50Hz

Control operation mode

Electrical control, button operation

Blast burner standard

IEC60695-11-2 Annex A,Burner opening:Φ7±0.05mm,made of brass

Gas flow and gas category

Mixture gas:650±30mL/min propane；10±0.5L/min air,Dual flow meter adjustment

Burning time

9999X0.1S

Burning angle

Tilt 45°±2°,Adjustable

Test flame calibration

Temperature measuring copper head:1000W:Ф9mm±0.01mm,weight before drilling:10 ± 0 .05g

Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple,temperature resistance 1100°

Distance between the bunsen burner port to temperature measuring copper block:95 mm

Flame height:Inner flame:55±5mm,Outer flame:180±10mm

Temperature rise time from 100±5°C to 700°±3°C 45±5s

Metallic screen size

H1200mm*W300mm*D450mm

Combustion chamber

1 m³

Gas

>95% propane or coal gas

Test sample

Length:600±25㎜,distance from the bottom:50mm

Fixed horizontal support of the sample

2, distance:550mm

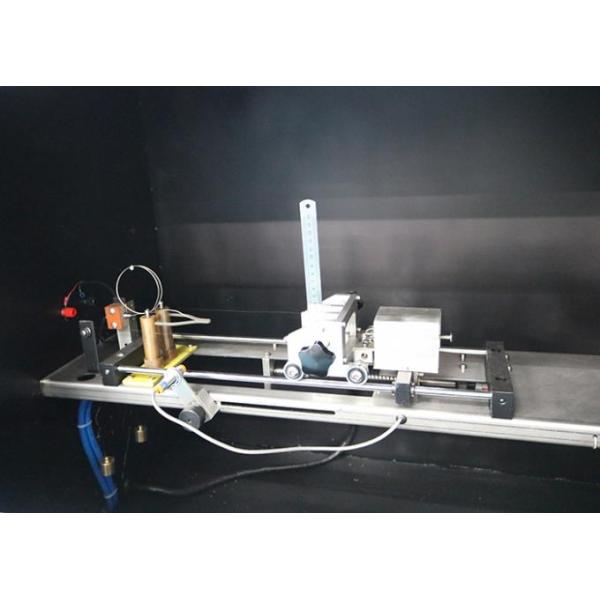

IEC60332 Vertical Flammability Test Equipment For Optical Single Cable

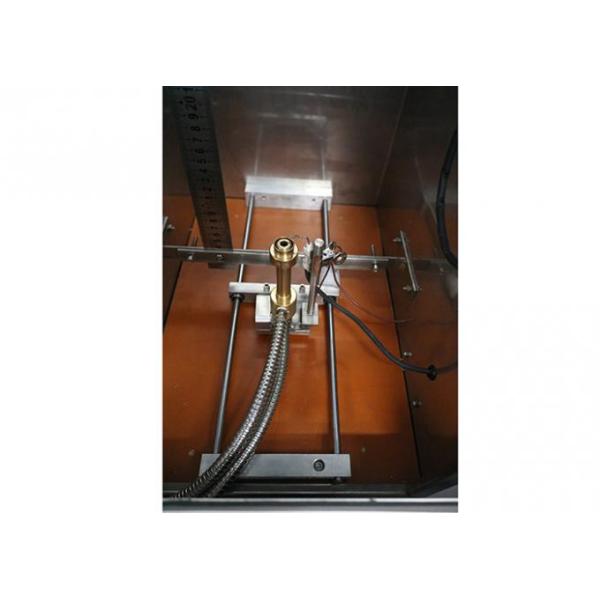

IEC60332 Vertical Flammability Test Equipment For Optical Single Cable

IEC60332 Vertical Flammability Test Equipment For Optical Single Cable
